Supported Devices
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|

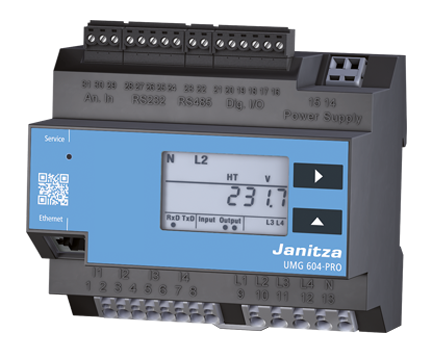

| Janitza UMG 604 PRO | ⌛ (coming soon, Eniris is looking for a partner to test this) | ✅ |
Wiring
Ethernet
For correct ethernet wiring: Follow the the guidelines for ethernet wiring.
RS485

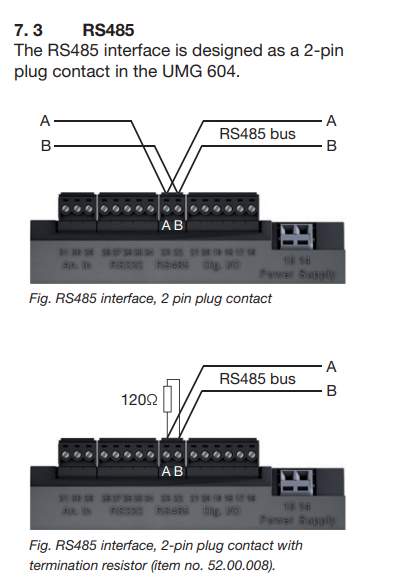

RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | Sofar EMS model OM1 | Sofar EMS model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| A | RS485 A | RS485_POS | RS485 A | TX+ |
| B | RS485 B | RS485_NEG | RS485 B | TX- |
| N/A | RS GND | GND | Not available | G |
Configuration
Ethernet

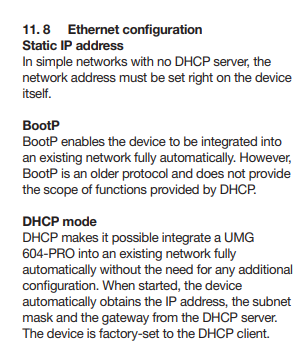

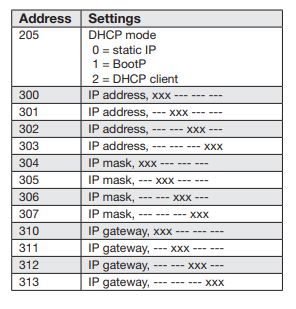

View the images for more information on configuration.
RS485

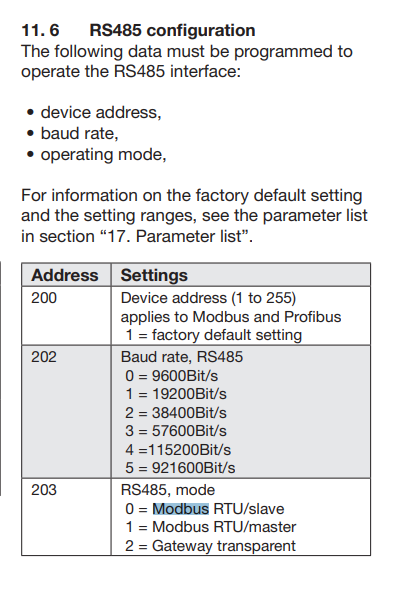

NOTE: RS485 Device Addresses
- You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
- Use lower addresses first (1, 2, ...) because the Sofar EMS will find them faster!
- For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The Sofar EMS will scan on those first.
Make sure the energy meter is set as a 'Modbus RTU/slave'!
