KACO Inverters

Supported Devices​

Device TypeVariantsModbus TCP (Ethernet)RS485Curtailment
blueplanet TL350.0 / 60.0✅❌✅
87.0 / 92.0 / 105.0🔶 (specific software required)
warning

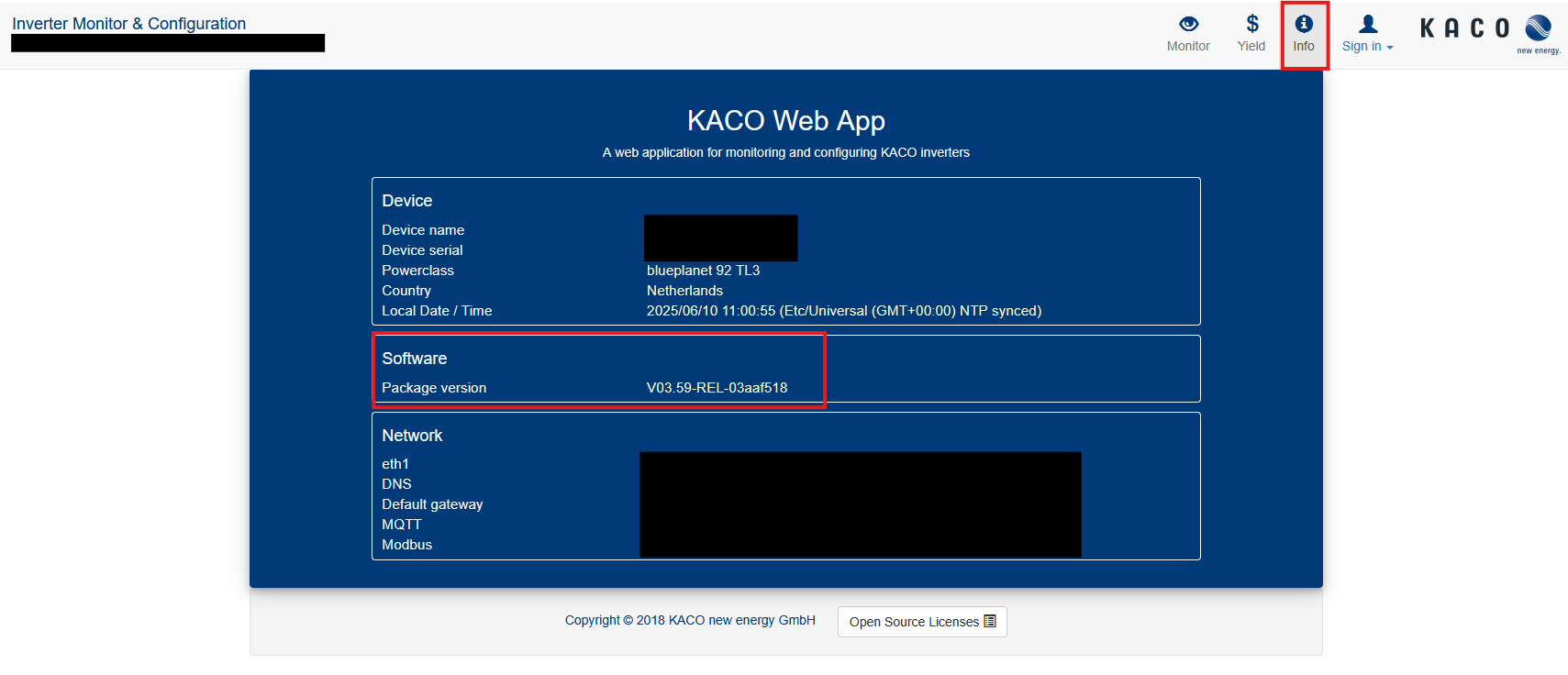

Curtailment of the blueplanet TL3 87.0 / 92.0 / 105.0 inverters is only possible with software version V03-59-REL-03aaf518 or newer. You can check the software version of the inverter under the "info" tab.

KACO software version

Wiring​

The Sofar EMS and the Kaco inverters communicate via Ethernet.

Ethernet​

For correct ethernet wiring: Follow the the guidelines for ethernet wiring.

Configuration​

blueplanet 50.0 / 60.0 TL3​

Modbus Write access must be enabled in the settings of the inverter:

  1. Log in to the interface of the inverter on the local Network
KACO blueplanet 50.0/60.0 Interface login
  1. Go to Interfaces and Network Services
KACO blueplanet 50.0/60.0 Interface menu
  1. Enable the "Modbus TCP Write access" setting
KACO blueplanet 50.0/60.0 Interface setting

blueplanet 92.0 / 105.0 TL3​

Modbus Write access must be enabled in the settings of the inverter:

  1. Log in to the interface of the inverter on the local Network
  2. Go to Interfaces and then Network Services
  3. Enable both the "Modbus TCP/UDP Read access" and "Modbus TCP/UDP Write access" settings
KACO blueplanet 92.0 / 105.0 Interface setting
