Kehua
Supported Devices
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| BCS1725K-B-HUD | ✅ | ✅ |
| NXPCS | ||
| BCS200K-B-HM |
Wiring
For correct ethernet wiring: Follow the .
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| BCS1725K-B-HUD | ✅ | ✅ |
| NXPCS | ||
| BCS200K-B-HM |
For correct ethernet wiring: Follow the .

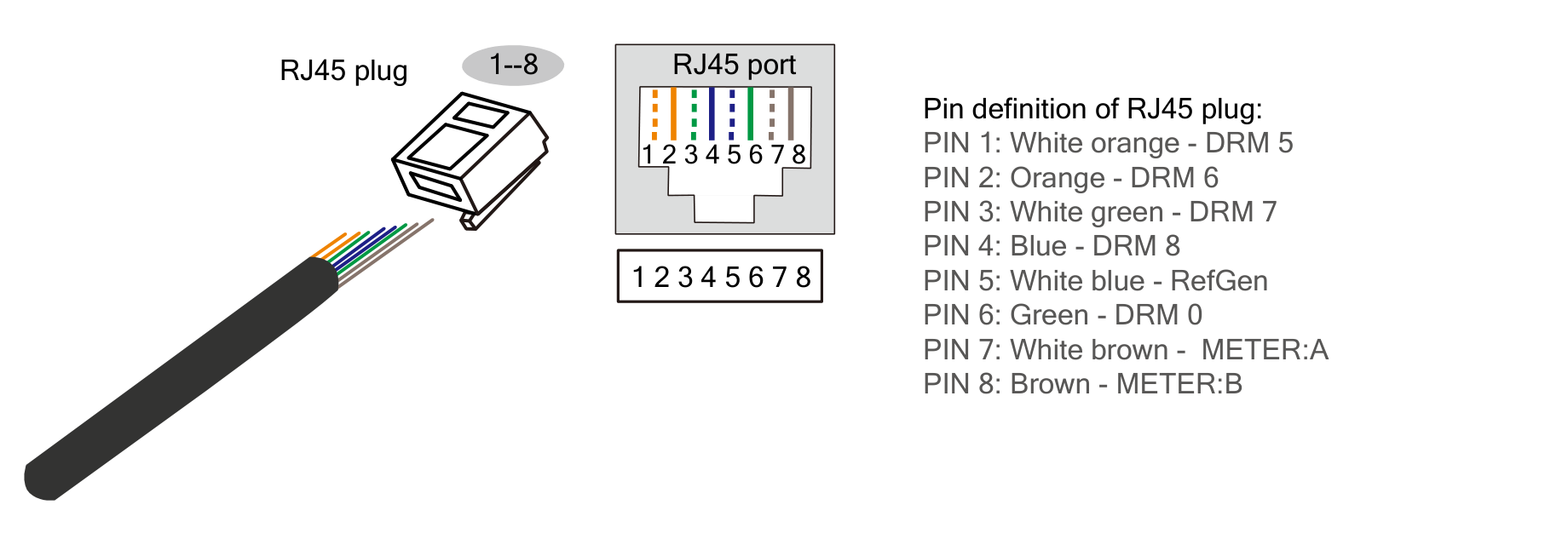

To establish communication between the PCS and EMS, use the RS485 interface available on the external wiring terminal bar, as shown below. This terminal provides dedicated ports for RS485 communication, which is used for both PC and BMS connections.
| Device | Sofar EMS model OM1 | Sofar EMS model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| RS485 A (Pin 5) | RS485 A | RS485_POS | RS485 A | TX+ |
| RS485 B (Pin 6) | RS485 B | RS485_NEG | RS485 B | TX- |
| N/A | RS GND | GND | Not available | G |
